Product Type：Electric Scooters
Product Introduction：AS201 Anti-Theft Electric Scooter with Mechanical Steering Lock The Airplaying AS201 is a 1000W fat tire electric scooter de...

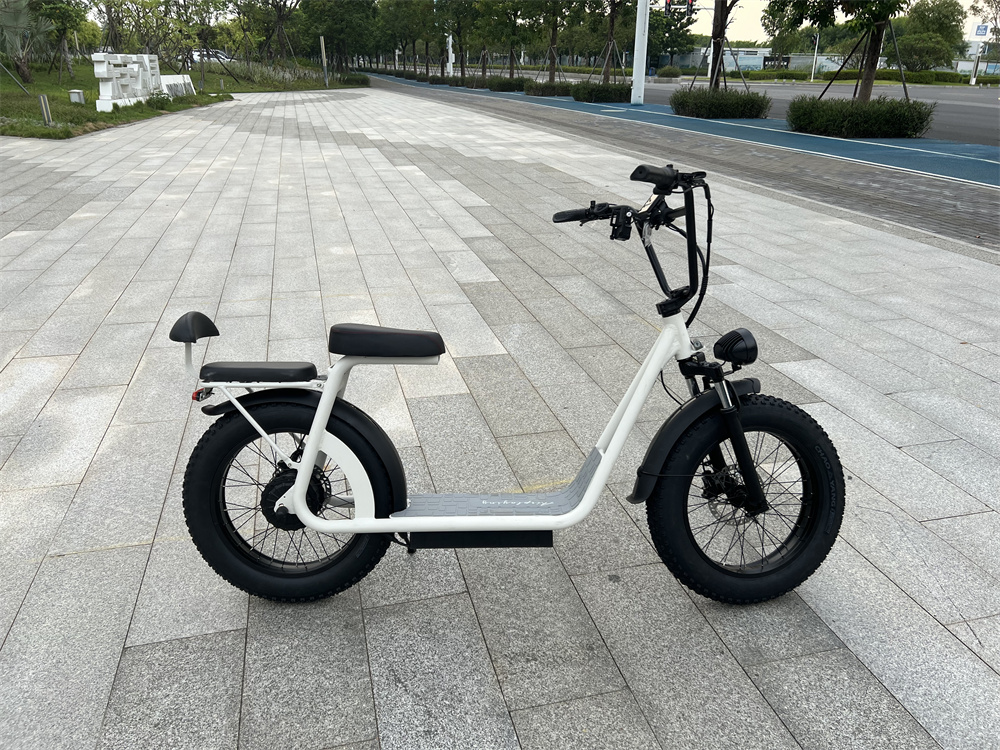

The Airplaying AS201 is a 1000W fat tire electric scooter designed for urban riding, recreation, and everyday mobility. This version adds a mechanical steering lock that restricts handlebar movement when the scooter is parked, providing an additional layer of physical security.
Built with an aluminum alloy frame, 20×4.0 fat tires, hydraulic front suspension, hydraulic disc brakes, and a removable battery configuration, the AS201 combines practical performance with a relatively lightweight design.
The mechanical steering lock is integrated into the steering system rather than relying only on an electronic power lock. When the scooter is parked, the steering can be locked to make the vehicle more difficult to push or ride away.
For distributors, retailers, rental operators, and private-label brands, the AS201 offers a practical fat-tire electric scooter platform with an optional anti-theft steering-lock configuration.
The AS201 can be equipped with a mechanical steering lock designed to restrict front-wheel and handlebar movement when the scooter is parked.
Unlike an electronic lock that controls the scooter’s electrical system, the mechanical steering lock works directly with the steering mechanism.
The basic operation is simple:
Park the scooter → turn the handlebar to the locking position → engage the mechanical lock → steering movement is restricted.
This makes the AS201 more difficult to maneuver when parked and provides an additional physical security measure for short-term parking.
The steering lock is not intended to replace an external security lock. In higher-risk locations, users can combine it with a suitable U-lock, chain lock, or other physical security device.
Electric scooters are often parked outside stores, offices, residential buildings, restaurants, and other public or semi-public locations.
An electronic power lock can prevent normal operation, but it does not physically prevent someone from moving the vehicle.
The AS201 mechanical steering lock addresses this specific situation by restricting steering movement.
It provides an additional security layer without changing the basic riding function of the scooter.
For fleet operators and distributors, the feature can also be considered when selecting an electric scooter for markets where parked-vehicle security is an important purchasing factor.
The AS201 uses a 1000W geared motor designed for practical urban and recreational riding.
The geared motor provides useful low-speed torque while maintaining the compact proportions of the AS201 platform.
Depending on the selected configuration, the AS201 can reach a maximum speed of up to approximately 55 km/h.
Actual performance depends on rider weight, battery capacity, controller settings, terrain, temperature, riding conditions, and local regulations.
The AS201 is equipped with 20×4.0 fat tires.
The wide tires are one of the defining features of the AS201 and provide a stable, planted riding feel on paved roads and suitable mixed surfaces.
The 20-inch wheel platform also keeps the scooter relatively compact while providing the visual appearance and riding characteristics associated with fat-tire electric scooters.
The AS201 is suitable for urban roads, recreational riding, and selected mixed-surface applications where permitted.
The AS201 uses an aluminum alloy frame designed to balance strength, weight, and everyday practicality.
Compared with many heavier electric cruiser platforms, the relatively lightweight frame makes the AS201 easier to store, transport, load, and move when it is not being ridden.
The frame is also suitable for different product configurations, allowing distributors and OEM customers to develop variations for different markets.
The AS201 features a hydraulic front suspension fork.
Combined with the 20×4.0 fat tires, the suspension helps absorb impacts from uneven pavement, road joints, gravel, and other common surface irregularities.
The suspension setup is designed primarily for urban and recreational riding rather than extreme off-road use.
The AS201 uses hydraulic disc brakes at the front and rear.
The hydraulic braking system provides controlled braking performance and complements the scooter’s 1000W motor and fat-tire configuration.
Actual stopping distance depends on speed, rider weight, tire condition, road surface, weather, and brake adjustment.
The AS201 supports a removable battery configuration.
The battery can be removed from the scooter for charging or replacement, depending on the final configuration.
This can be particularly useful for users who live in apartments or other locations where the scooter cannot be brought indoors for charging.
The removable battery configuration can also be useful for commercial fleets, rental businesses, and distributors looking for easier battery management.
Battery capacity and cell configuration can be customized according to the target market and project requirements.
The AS201 can combine electronic access functions with the mechanical steering lock.
These two systems serve different purposes.
Electronic access controls vehicle operation.
Mechanical steering lock restricts steering movement when the scooter is parked.
External security lock can provide additional physical protection when the scooter is parked in higher-risk locations.
Using multiple security measures provides a more complete approach to vehicle security.
The AS201 combines a seated riding position, 20×4.0 fat tires, 1000W geared motor, hydraulic suspension, and hydraulic disc brakes in a compact electric scooter platform.
It can be used for a range of applications, including:
Suitable for short-distance urban trips and everyday mobility where the vehicle is legally permitted.
The seated design and fat tires make the AS201 suitable for short trips to shops and local destinations.
The 20×4.0 tires and 1000W motor provide a more substantial riding experience than a basic commuter scooter.
The removable battery makes charging more practical for some residential applications.
The mechanical steering lock can provide an additional security feature for rental and shared-use fleets.
| Specification | AS201 |
|---|---|
| Product Type | Fat Tire Electric Scooter |
| Model | AS201 |
| Security Feature | Mechanical Steering Lock |
| Motor | 1000W Geared Motor |
| Maximum Speed | Up to 55 km/h* |
| Frame | Aluminum Alloy |
| Front Suspension | Hydraulic |
| Brakes | Front & Rear Hydraulic Disc |
| Tires | 20×4.0 Fat Tires |
| Battery | Removable Lithium Battery |
| Battery Capacity | Configuration Dependent |
| Display | LED Display |
| Access System | NFC |
| Charging | USB Charging |
| Audio | Bluetooth Speaker |
| Maximum Load | Up to 150 kg* |
| OEM / ODM | Available |
*Specifications may vary according to battery, controller, motor, and market configuration. Final specifications should be confirmed before production.
The AS201 can be configured with a mechanical steering lock that restricts handlebar movement when the scooter is parked.
The steering lock is designed as an additional physical security measure. It does not guarantee that the vehicle cannot be stolen and should not be described as a complete theft-prevention system.
For higher-risk parking locations, an external physical lock should be used together with the mechanical steering lock.
The two systems have different functions.
| Feature | Electronic Lock | Mechanical Steering Lock |
|---|---|---|
| Controls motor operation | Yes | No |
| Restricts steering movement | No | Yes |
| Works as a physical barrier | Limited | Yes |
| Main purpose | Vehicle access | Parking security |
| Can be combined | Yes | Yes |
Using both systems gives the AS201 a more practical security configuration.
Yes. The AS201 is designed primarily for urban transportation, recreational riding, and short-distance mobility.
Its 20×4.0 fat tires, seated riding position, hydraulic suspension, and 1000W geared motor make it suitable for a variety of paved urban environments.
Public-road use depends on local laws, vehicle classification, speed requirements, registration, and other applicable regulations.
Yes. The AS201 can be configured with a removable lithium battery.
The removable design allows the battery to be taken out for charging or replacement, depending on the final configuration.
Different battery capacities and cell options can be discussed for OEM and distributor projects.
The AS201 uses 20×4.0 fat tires.
The wide tires provide a stable riding platform and are one of the key visual and functional characteristics of the AS201 electric scooter.
The AS201 uses a 1000W geared motor.
The motor is designed for urban and recreational riding and can provide strong low-speed torque for everyday use.
The final motor, controller, and speed configuration can be adjusted for different markets where required.
Yes.
Airplaying supports OEM and ODM development for the AS201 platform.
Customization can include:
Minimum order quantities and available configurations depend on the specific project.
The AS201 is designed as a flexible electric scooter platform rather than a single fixed configuration.
Distributors can select different battery and component specifications according to their target market.
OEM and private-label customers can also develop their own branded version of the AS201 while retaining the core 20×4.0 fat-tire platform.
The mechanical steering-lock option provides an additional configuration for markets where parked-vehicle security is an important consideration.
The AS201 platform can be developed in different configurations for different applications.
AS201 Standard
Compact fat-tire electric scooter for urban and recreational riding.
AS201 Bench Seat
Long-seat configuration for a more relaxed seated riding experience.
AS201 Anti-Theft
Mechanical steering-lock configuration for additional parking security.
AS201 Removable Battery
Battery configuration designed for convenient charging and replacement.
This allows distributors and retailers to select an AS201 configuration based on their market and customer requirements.
The AS201 combines several practical features in one compact platform:
1000W geared motor
20×4.0 fat tires
Aluminum alloy frame
Hydraulic front suspension
Hydraulic disc brakes
Removable battery
NFC electronic access
Mechanical steering lock
For B2B buyers, the platform can be adapted for different market requirements through OEM and ODM development.
